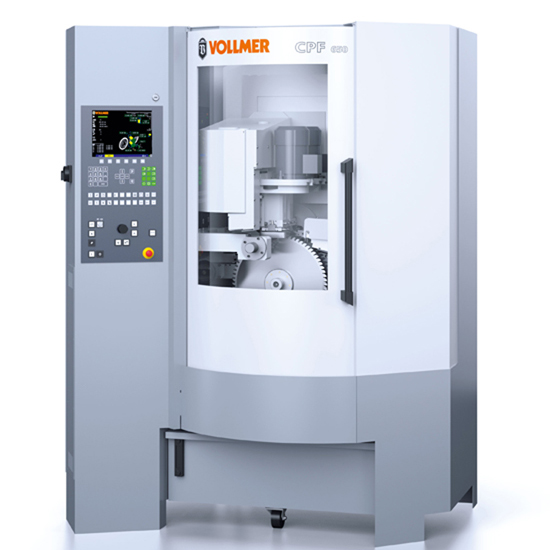

VOLLMER CPF 650

Автоматический станок с 5-осевым ЧПУ для двусторонней боковой заточки твердосплавных зубьев дисковых пил различных диаметров и с различной геометрией боковых поверхностей.
Наружный диаметр пильного диска: 80 – 650 мм

ДЕТАЛЬНОЕ ОПИСАНИЕ

///The CP series is ideally equipped for sharpening carbidetipped circular saw blades. Offering versatility that leaves nothing to be desired, yet with numerous options.

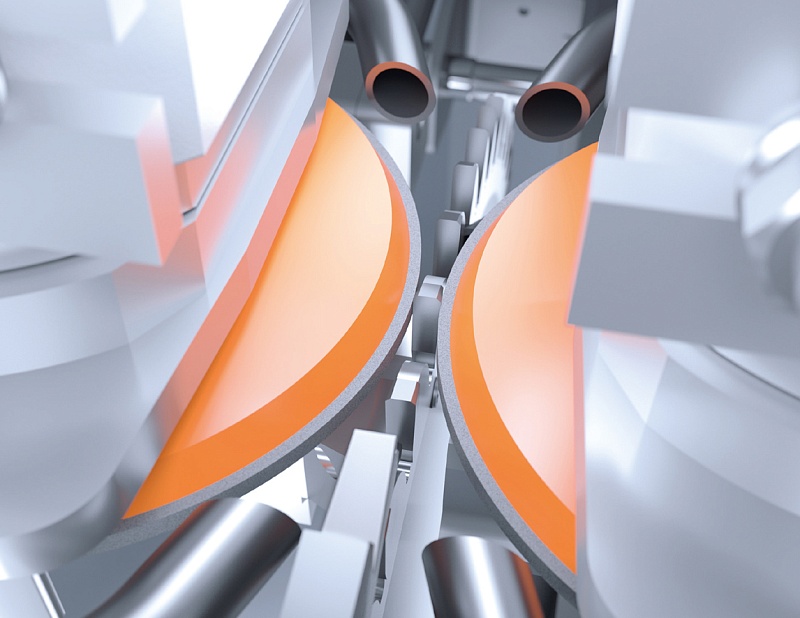

/// Four CNC-controlled axes for the complete machining of all commonly used tooth geometries in just one cycle – even for saws with axial face angle and group toothing

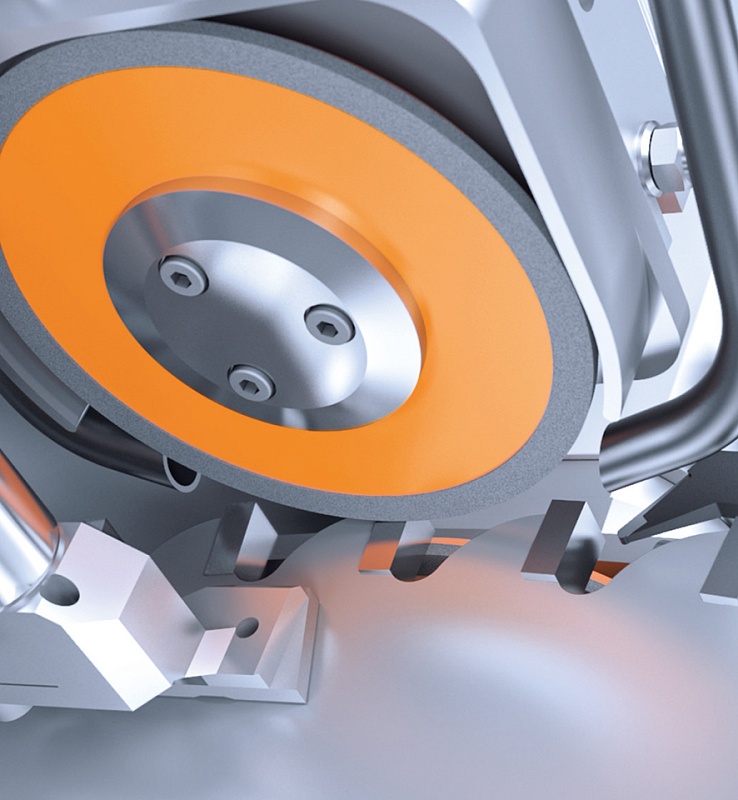

/// Oscillation grinding as standard – for high material removal rates in just one cycle, e.g. when machining teeth for repair
/// Motor-driven hook and clearance angle adjustment for rapid switchover from face to top grinding
/// Optimum movement coordination for short grinding times and reduced non-productive time
/// Consistently hydraulic-free – extremely low-maintenance
/// Automatic central lubrication included in the basic equipment for reduced maintenance effort

The modern operation concept with the new multifunction handwheel makes work significantly easier and faster. The axes are selected and controlled by only one module, which is very helpful for avoiding the possibility of incorrect operation. The handwheel is also used as an override potentiometer in order to be able to carry out speed adjustments in automatic mode.

/// Optimised machining times and surface finish quality through variable input of the grinding speeds for various different surfaces
/// No tooth pitch input required thanks to the feed pawl sensor system
/// Automatic adjustment of the hook angle and clearance angle through digital detection avoids adjustment errors



Технические характеристики станка:
Circular saws
Outside diameter 80–650 mm
Bore diameter from 10 mm
Blade thickness ≤ 5 mm
Tooth pitch ≤ 100 mm
Hook angle –10° to +30°
Clearance angle +5° to 45°
Bevel grinding on the tooth top ≤ 45°
on the positive tooth face ≤ 15°
Grinding paths
Hook angle ≤ 20 mm
Clearance angle ≤ 24 mm
Grinding shaft drive output 0.7 kW
Grinding wheels
Outside diameter 125 mm
Bore diameter 32 mm
Peripheral speed approx. 27 m/s
Coolant tank capacity approx. 125 l
Connected load (without auxiliary equipment) approx. 2.2 kVA
Weight approx. 900 kg
